There are three Tabs in this dialog box that control the three areas of a song; Title Page at the start (optional), Lyrics area for the words to sing, and the Credits Page at the song end (optional).

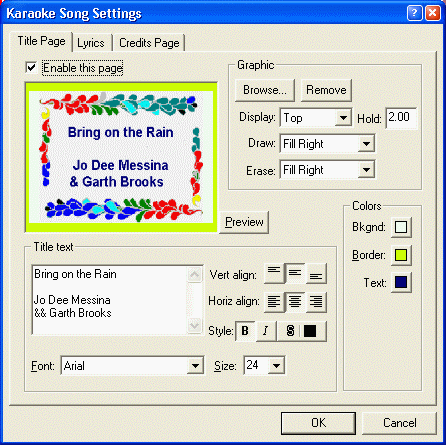

Title Page
When enabled, this creates a Title page that appear at the very start of your song. Usually it shows the song name, key, playing time and the producer´s graphic advertisement. If the lyrics start too early in the music, KHPro automatically delays the music just the right amount so the Title Page can draw and erase before the lyrics must start.
Note: If an MP3 or WMA audio file is open, if you enable the Title page to appear, you can only export a .bin format file (not mp3+g, wma+g or zip formats).
You can enter multiple text lines and select the font, point size, bold and italic attributes, text and shadow colors, horizontal position (left, center, right) and vertical position (top, center, bottom).
You can select a multi-color graphic image (bmp, jpg, gif, tif, png formats supported) to appear with the text drawn over top. If necessary, it automatically scales to fit the size, and reduces colors to meet the CD+Graphics spec. You can select 9 different ways for the image to appear and erase.
The Preview button allows seeing exactly what your Title Page will look like in a Karaoke Player.

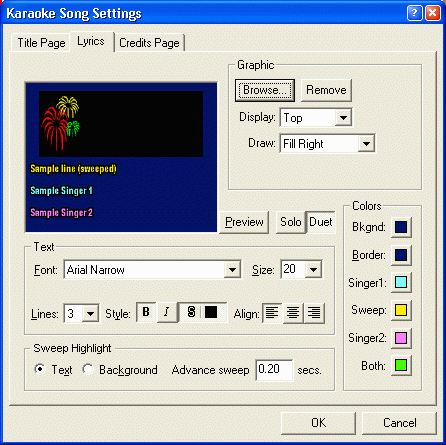

Lyrics
This Tab allows selecting the parameters that apply for the entire lyric area, controlling how the lyrics appear to the singer. You can set the background and border colors, text and sweep colors, font size and type. You can select the lyric lines horizontal position (left, center, right) and vertical position (top, center, bottom).
Here you choose whether the song is a Solo or Duet. If Solo, you can select the Singer text color and the highlight sweep color. If Duet, the Singer2 and Both color pickers also become active. The color selectors show only the 4,096 colors allowed in a CD+G karaoke song. The colors chosen here appear in the Adjust Lyrics screen where you can set each Duet lyric line to the Singer who is to perform it, or both.
In the Edit Lyrics screen with a Duet song you can select to connect lines below to those above so both sweep at the same time, but each singer having different words highlighting at different rates. This also can create Music Notation songs with the cords above and the lyrics below, both highlighting together at different rates.

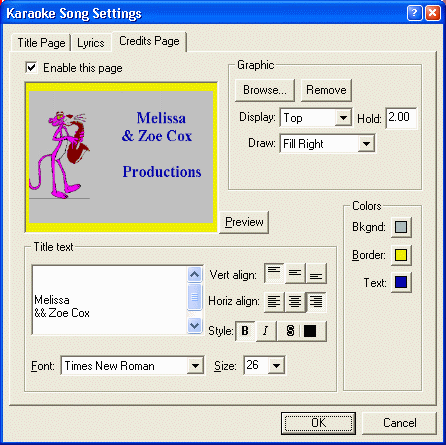

Credits Page
You can enable/disable the Credits Page to appear just like the Title page, but at the end of the song. It displays multiple text lines in your colors and attributes over top of an optional graphic image. The page starts drawing 2 seconds after the song lyrics have finished highlighting, and remains for 1 second after the last credit word draws. If the music ends before the page is finished displaying, silence is automatically added so you do not need an audio editor with KPro.
Note: If an MP3 or WMA audio file is open, if you enable the Credits page to appear, you can only export a .bin format file (not mp3+g, wma+g or zip formats).
